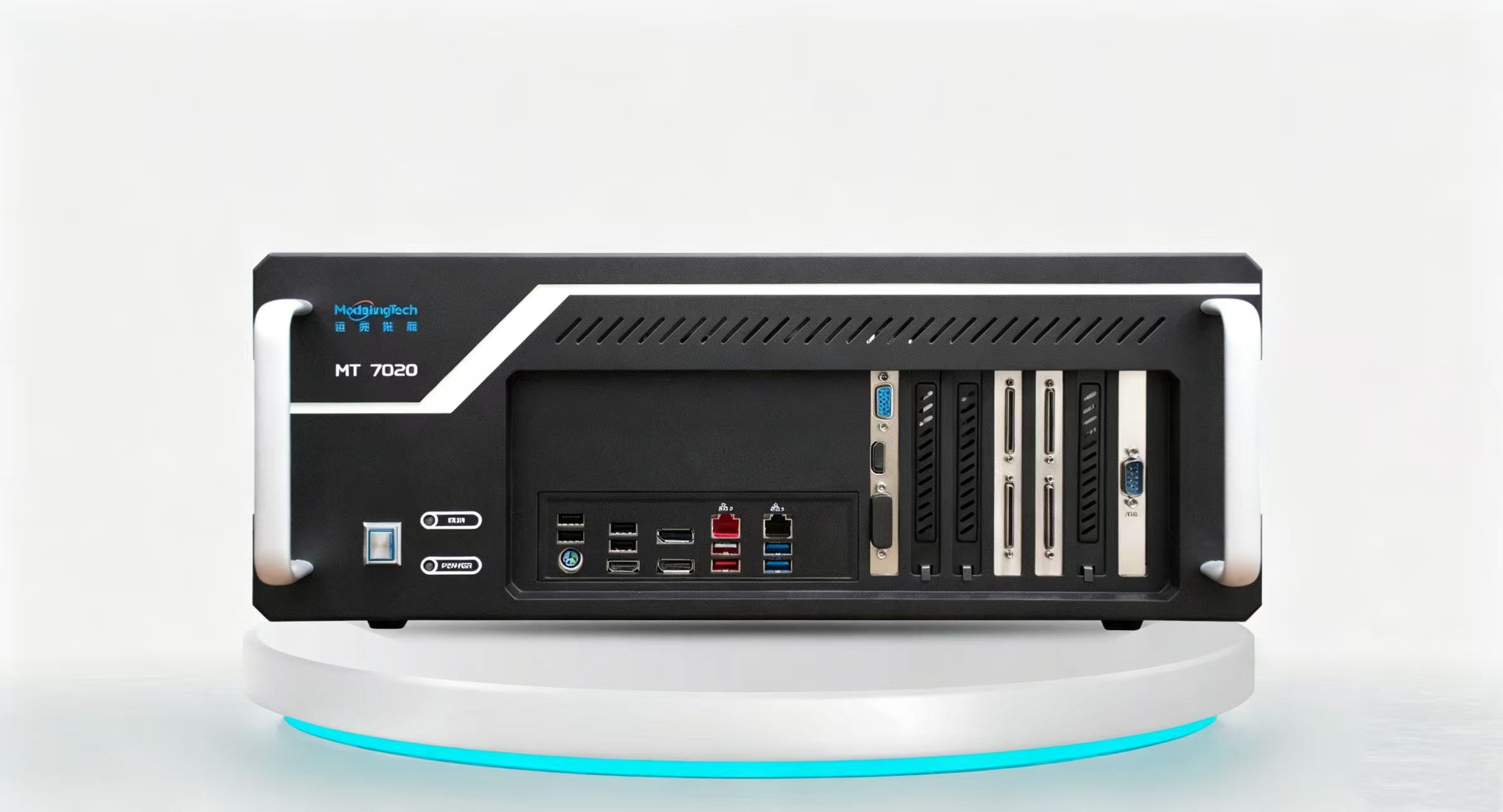

To address the testing demands of electric drive controllers in new energy vehicles, rail transit, aerospace and other application fields, ModelingTech Energy Technology ingeniously integrates the high simulation accuracy, high dynamic performance and user-friendliness of motor simulation platforms, and develops the cost-effective general-purpose real-time hardware MT 7020. It enables users to run self-defined models in real time.

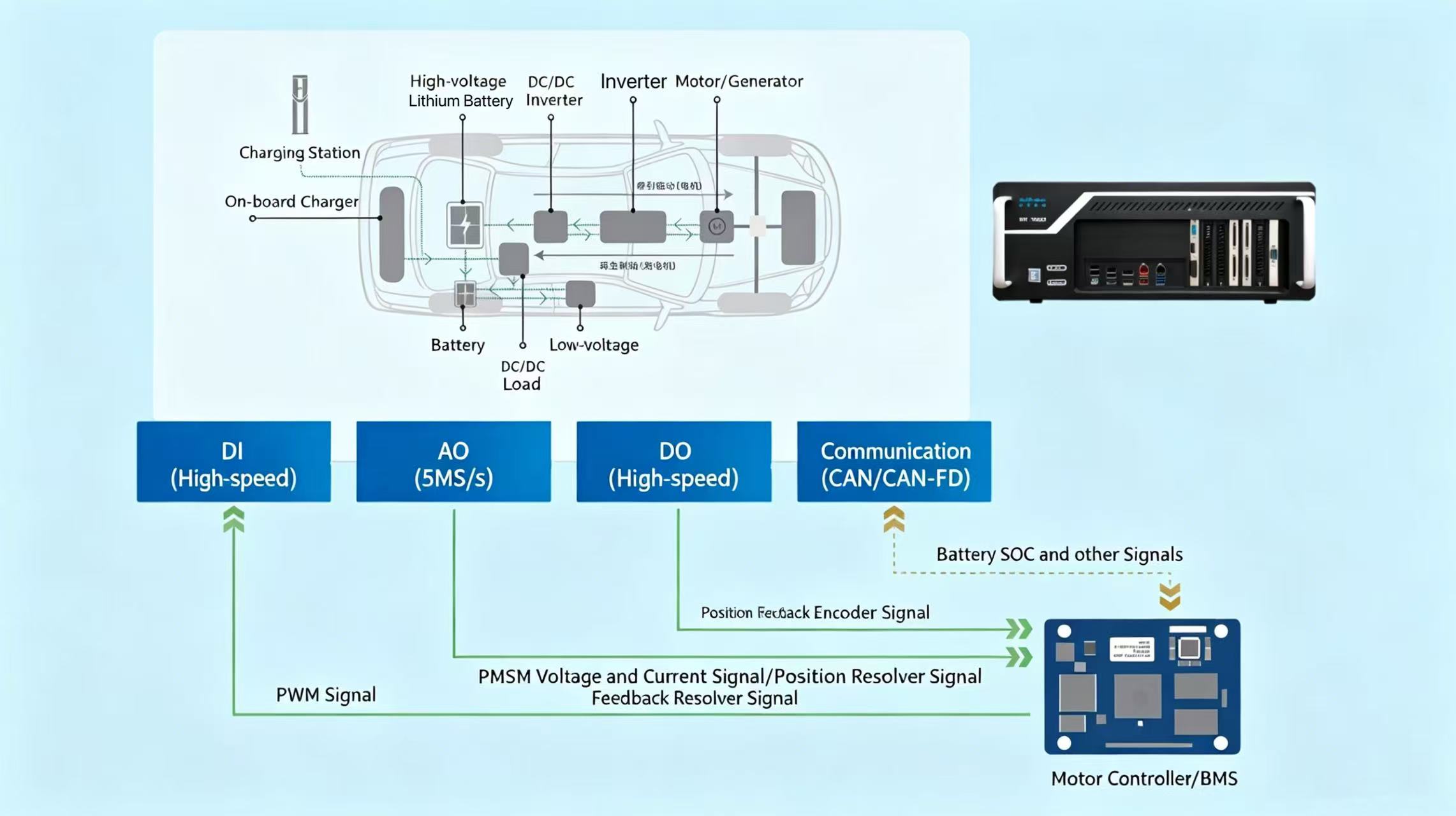

Combined with the FPGALab data interaction module and compilation function, it quickly converts self-defined models into real-time executable code to complete full Model-in-the-Loop (MIL) simulation.

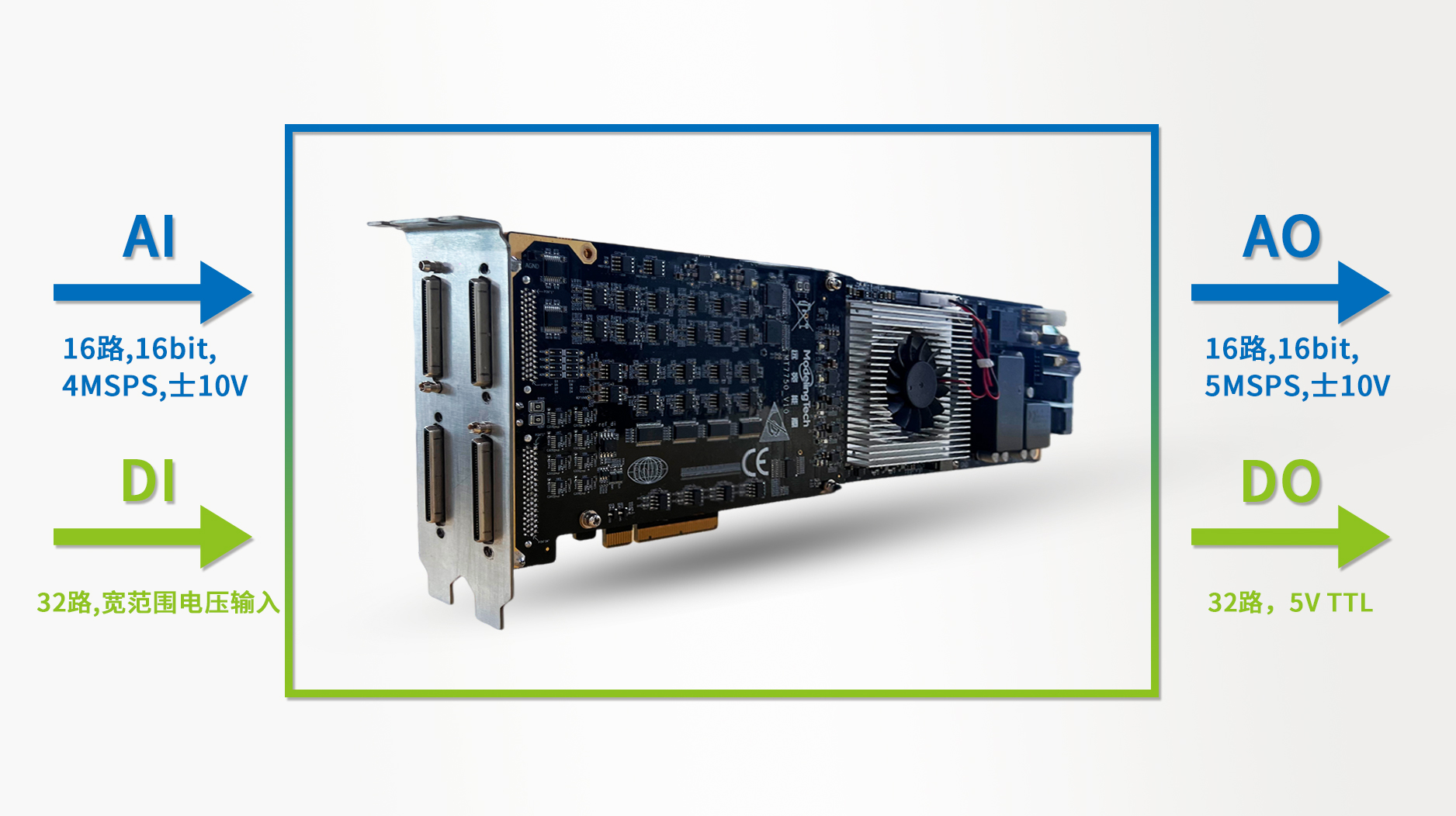

A single board integrates AI, AO, DI and DO channels, serving as a cost-effective solution for motor simulation.

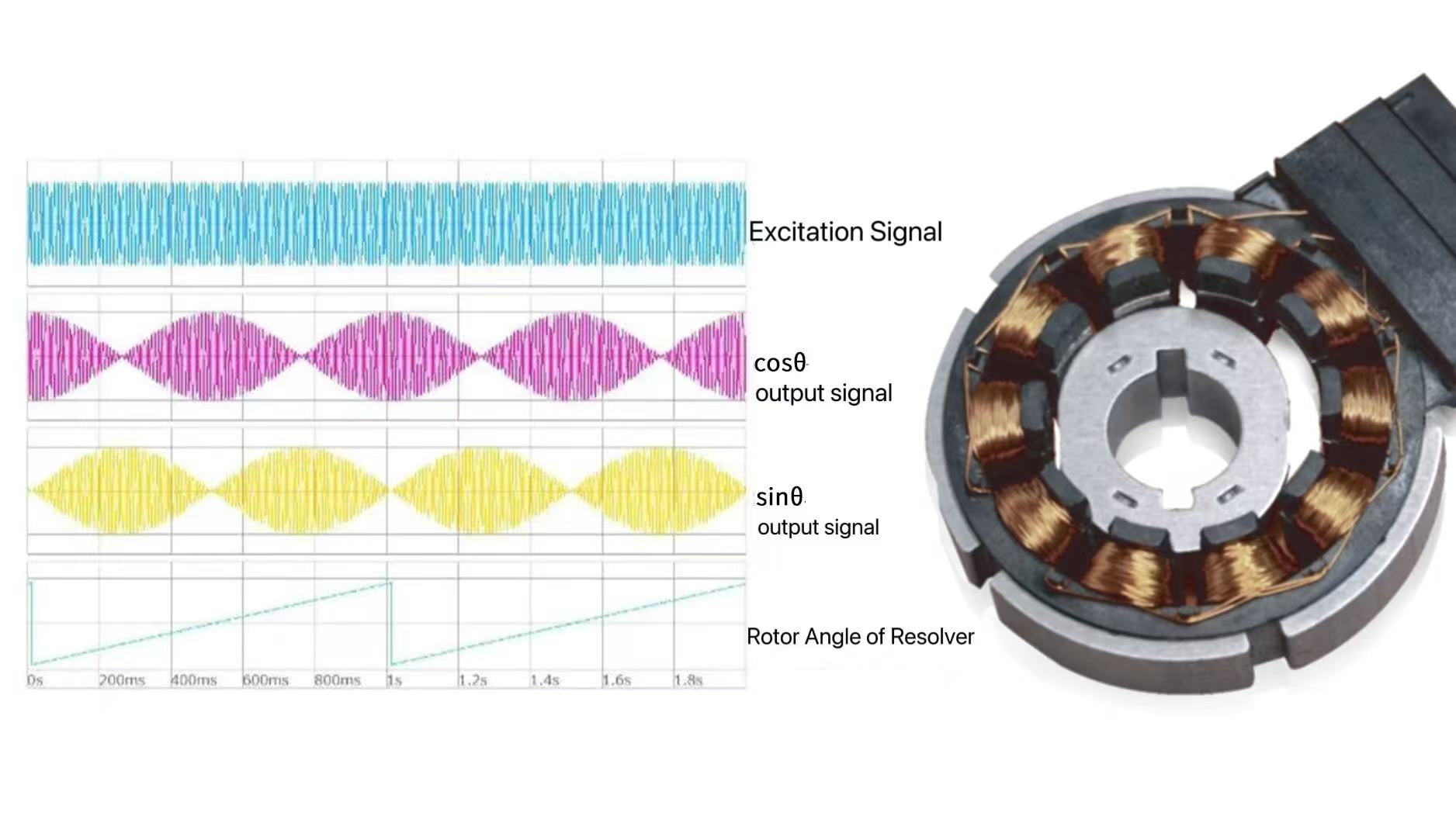

It delivers better representation of high-frequency signals and accurately simulates motor resolver sensors.
Simplifies testing workflows; it supports universal communication protocols including Modbus, CAN and CAN-FD, allowing users to focus on core development tasks.
Traction drive system simulation
Electric drive controller simulation
Simulation and testing of MCU
Simulation and testing of OBC
MEA power systems
Satellite power supply system simulation
