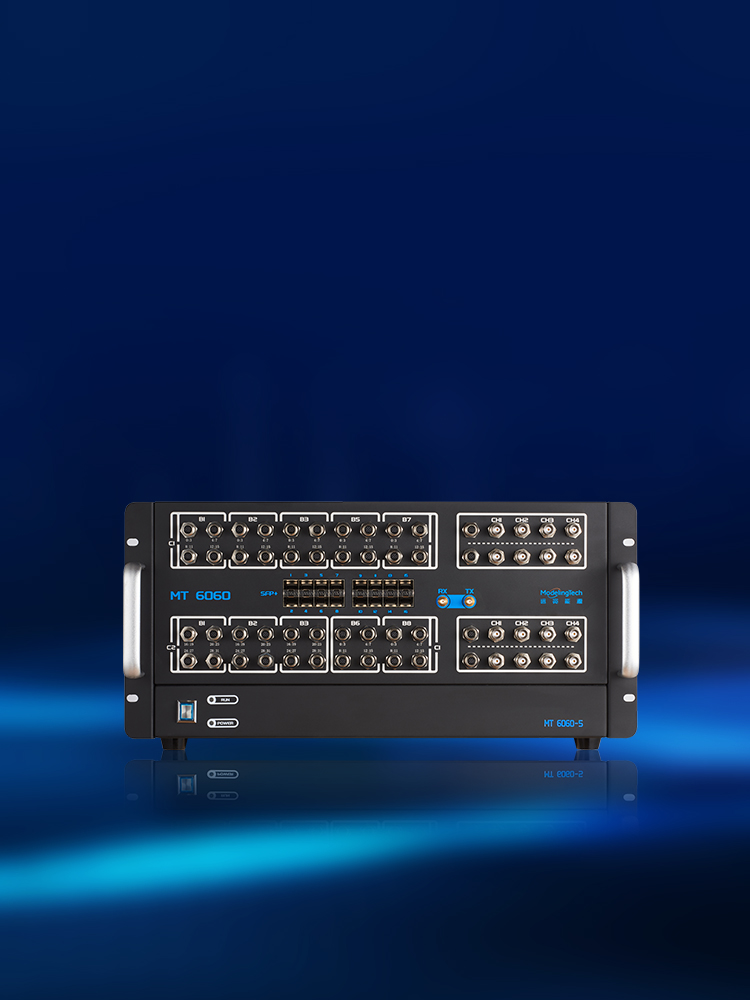

MT 6060-5 Simulator

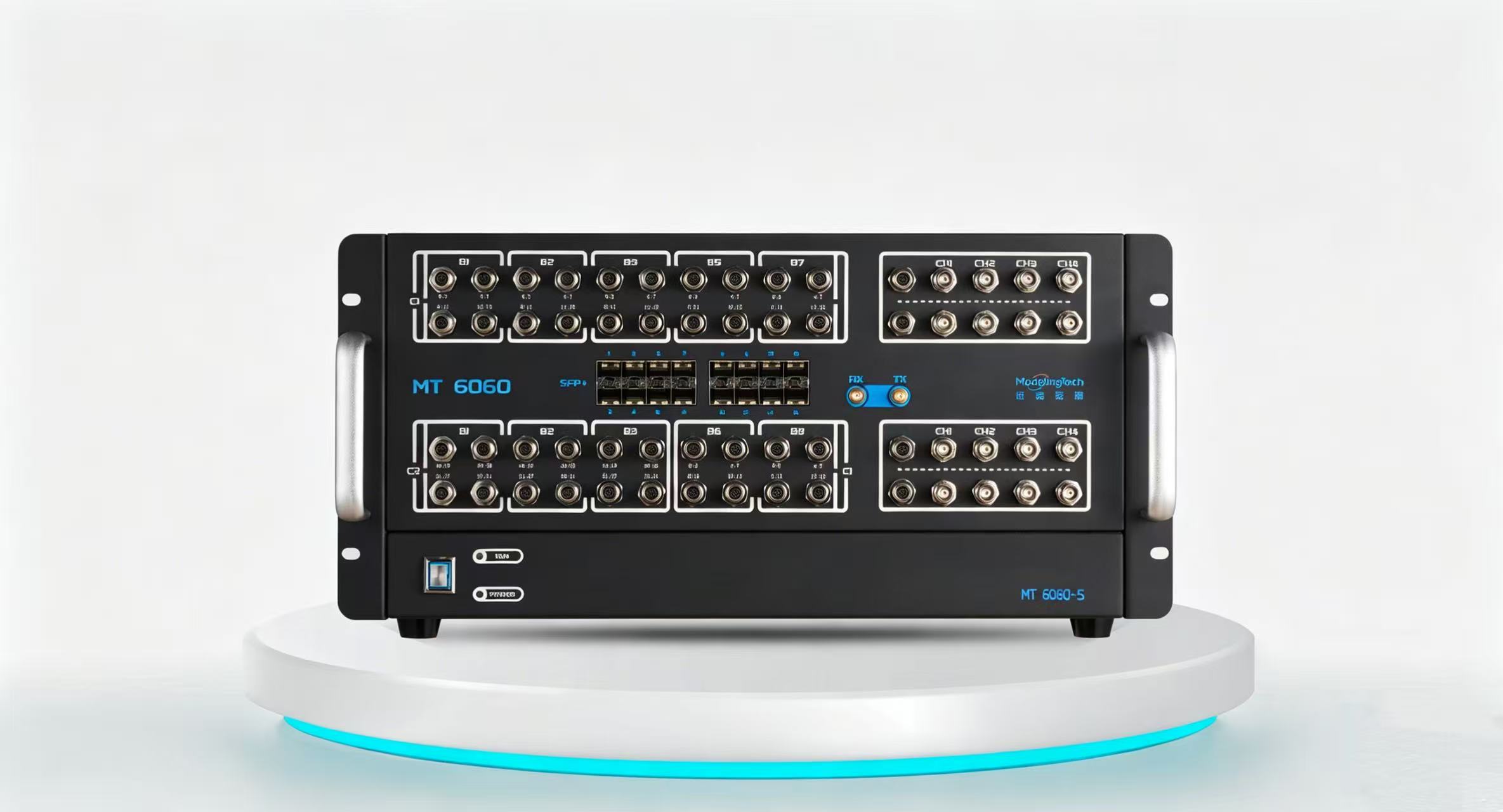

The MT 6060-5 Real-Time Simulator is a new-generation industrial real-time simulator independently developed by ModelingTech Energy Technology, equipped with powerful CPU and FPGA. It shares the identical hardware architecture with ModelingTech’s flagship MT 8060 platform, serving as a cost-effective choice for users who require both CPU and FPGA simulation performance simultaneously.

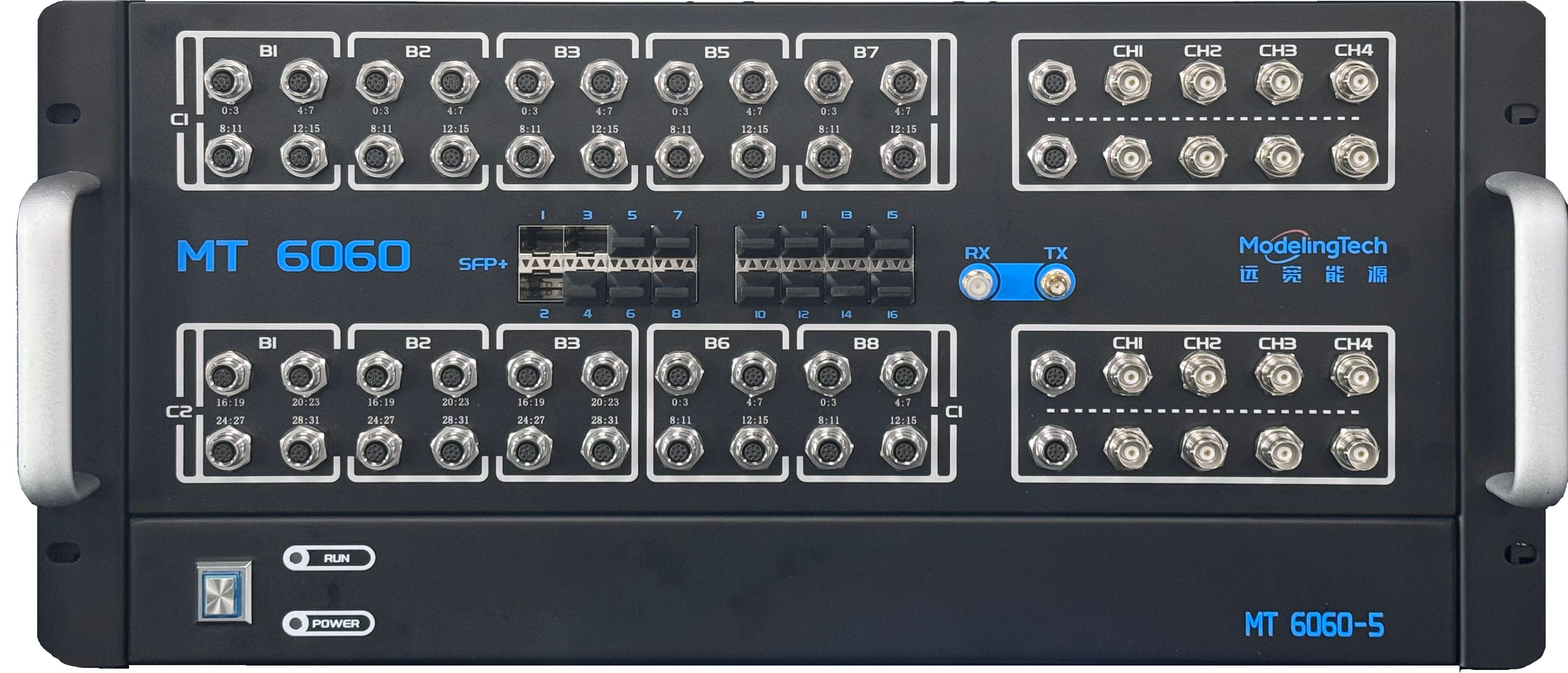

Detailed Highlights

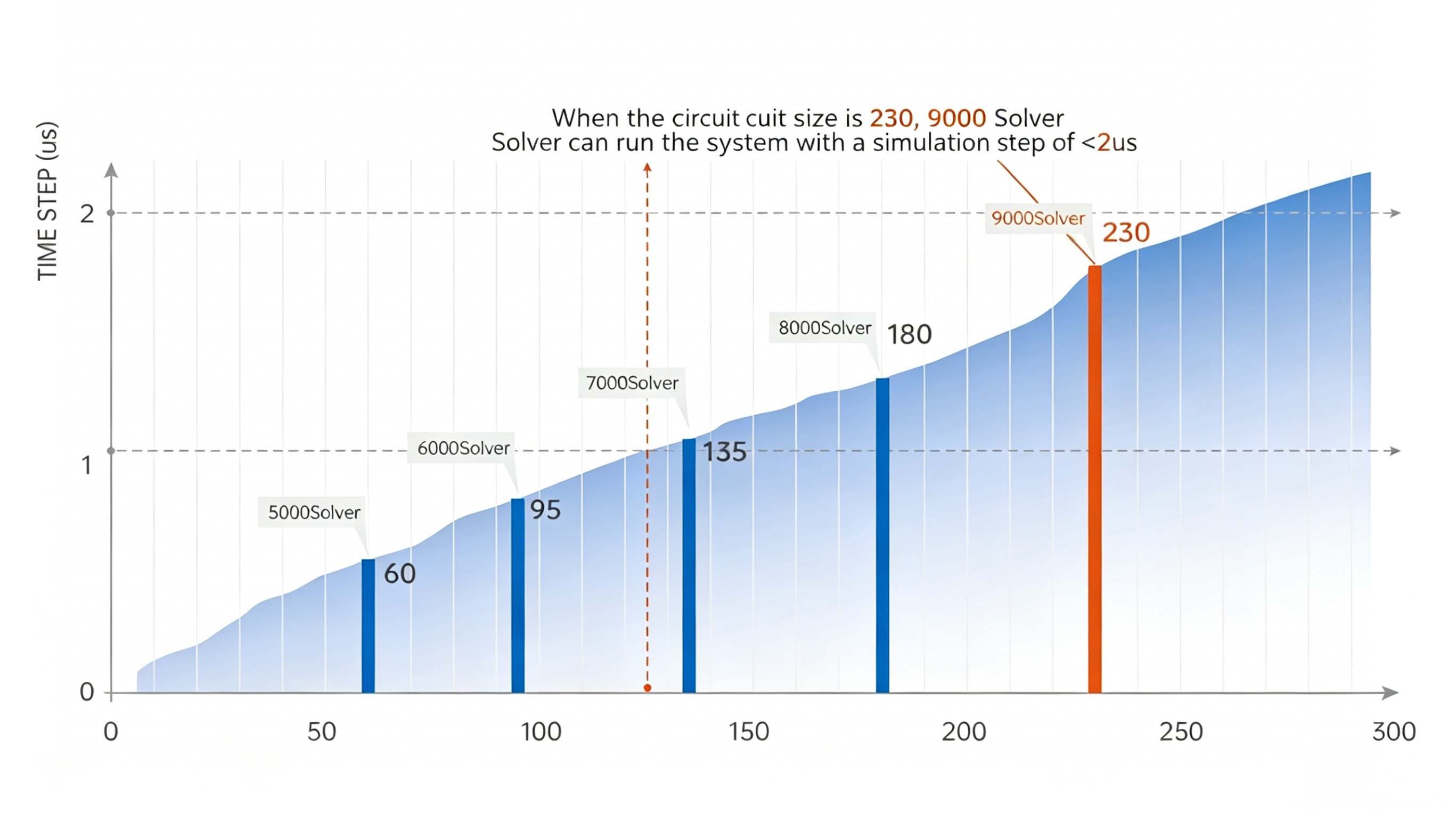

High-Performance FPGA

Abundant logic resources support microsecond-level real-time simulation of large-scale power electronic device systems.

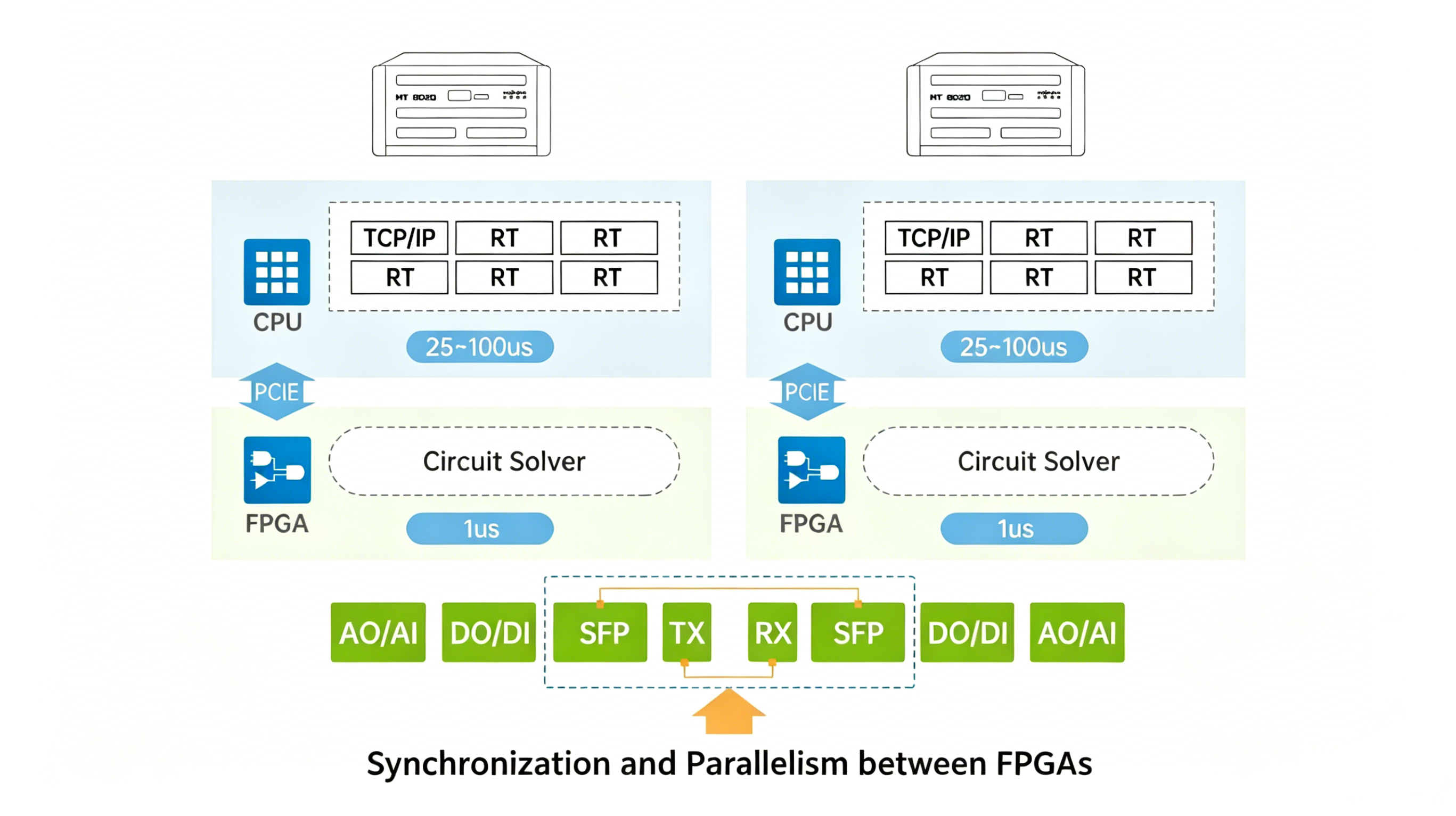

16-Channel SFP+ Fiber Expansion

Enables high-speed parallel computing between simulators to meet advanced testing demands for multilevel systems and multi-device cascading.

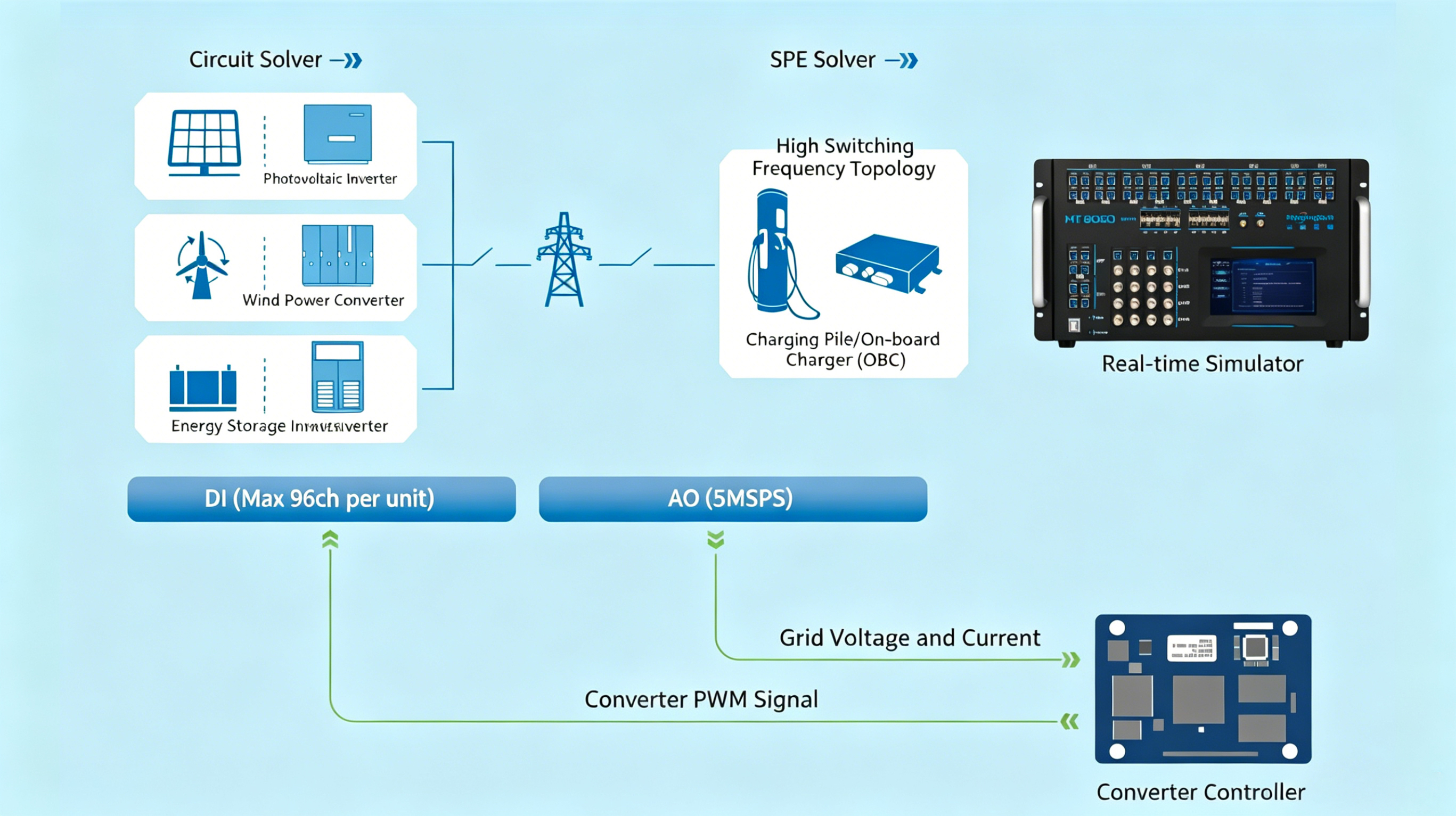

Ultra-High-Speed I/O, 5 MSPS AO
Compatibility with Industrial Communication Protocols including GOOSE

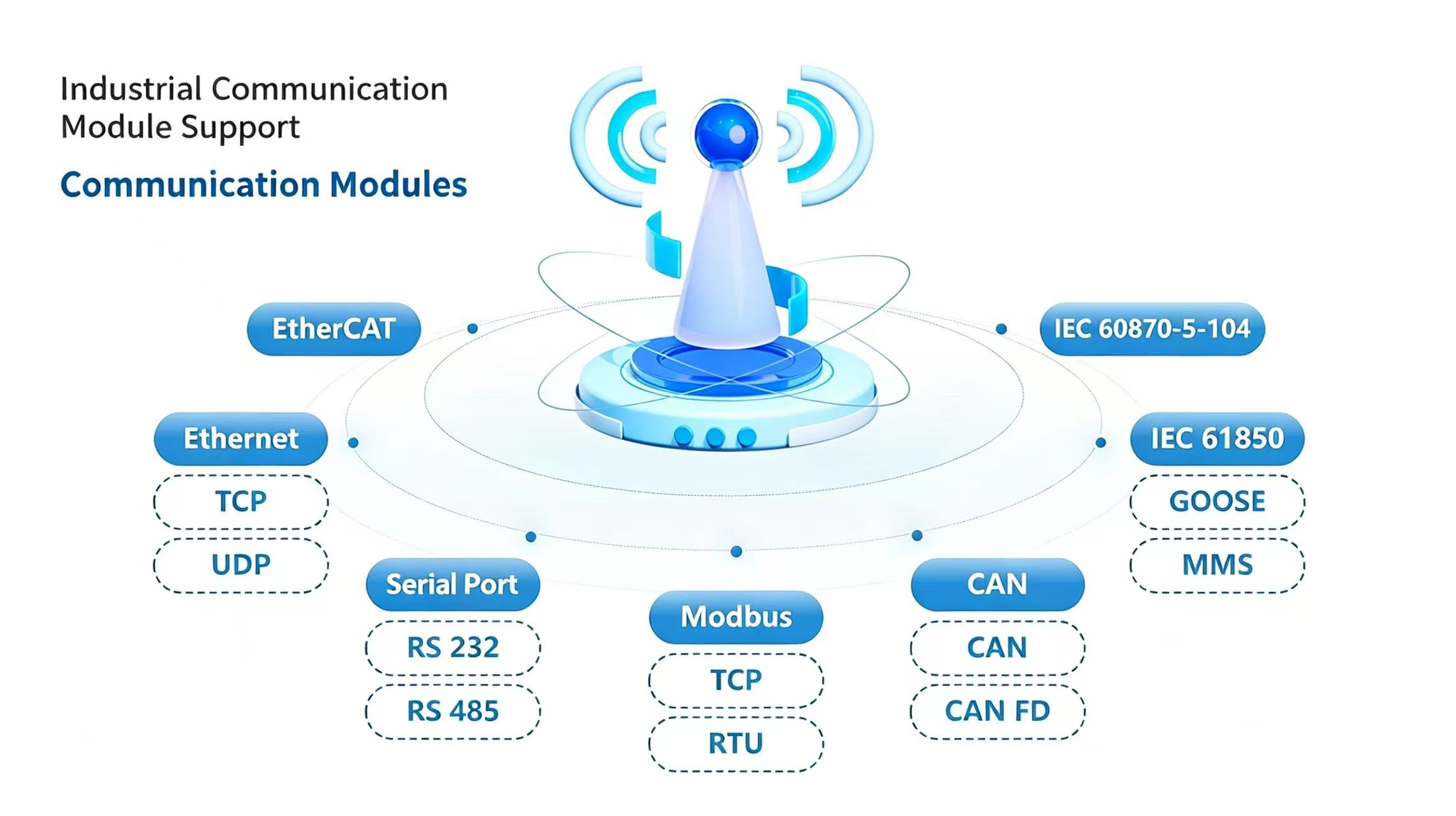

Supports industrial communication protocols such as Modbus TCP/RTU, CAN, Ethernet TCP/UDP, GOOSE and Serial.

Compatibility with Industrial Communication Protocols including GOOSE

Technical Parameters

Model

MT 6060-5
Processor

6-core, 3.2 GHz base frequency
Memory

32 GB DDR4 SDRAM
FPGA

1451K Logic Cells, 75.9 Mb Memory Resources
Analog Output

up to 64 / 48 channels
Analog Input

up to 16 channels, 16-bit resolution, 4 MSPS, ±10 V
Digital Input

up to 96 channels
Digital Output

up to 16 channels of 5 V TTL; 16 channels of externally powered signals
Communication

Modbus, Ethernet, Serial, CAN/CAN-FD, GOOSE, IEC 104, EtherCAT
Fiber Interfaces

16 × SFP+
Dimension

480 mm (L) × 533 mm (W) × 222 mm (H)
